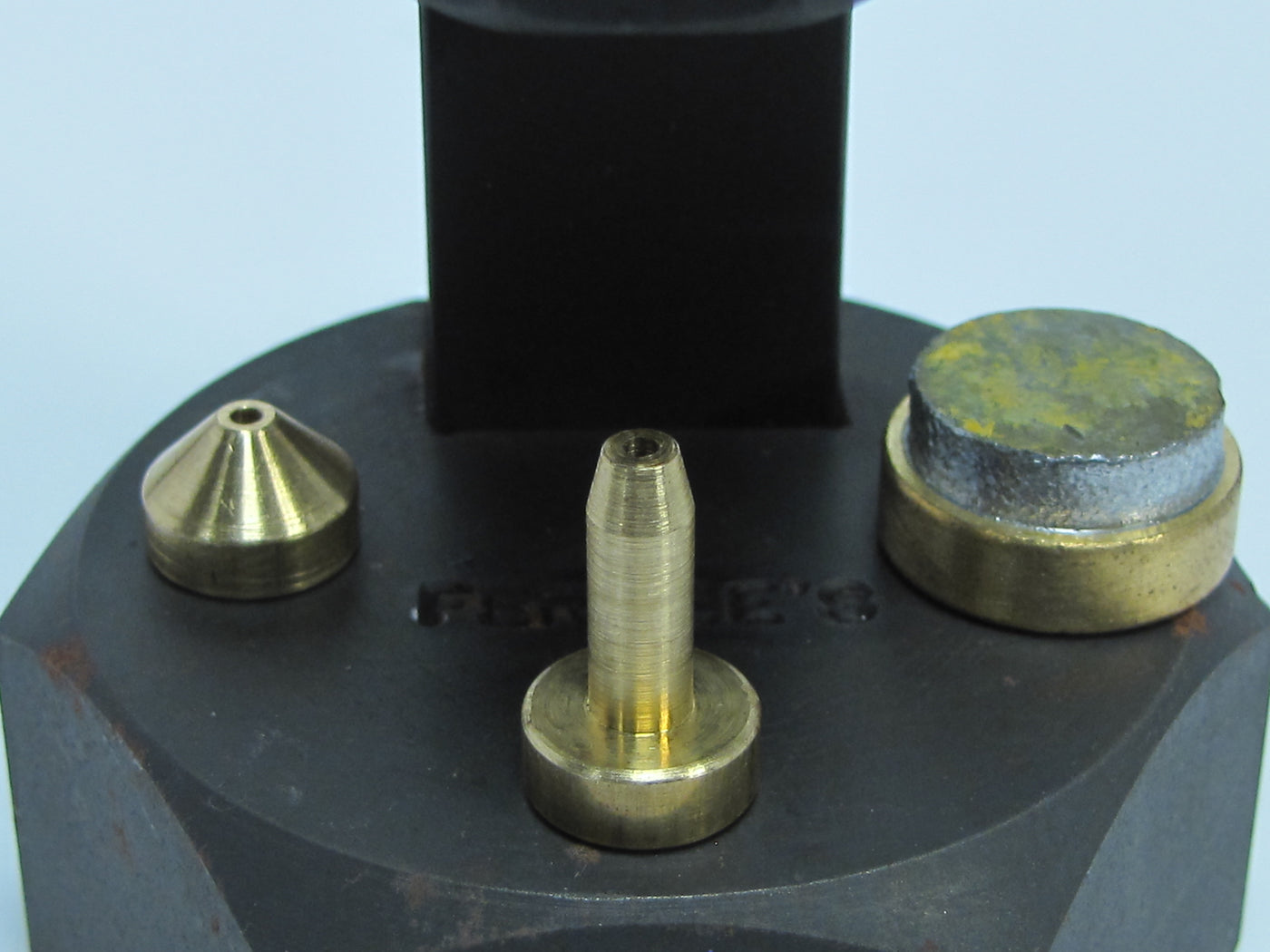

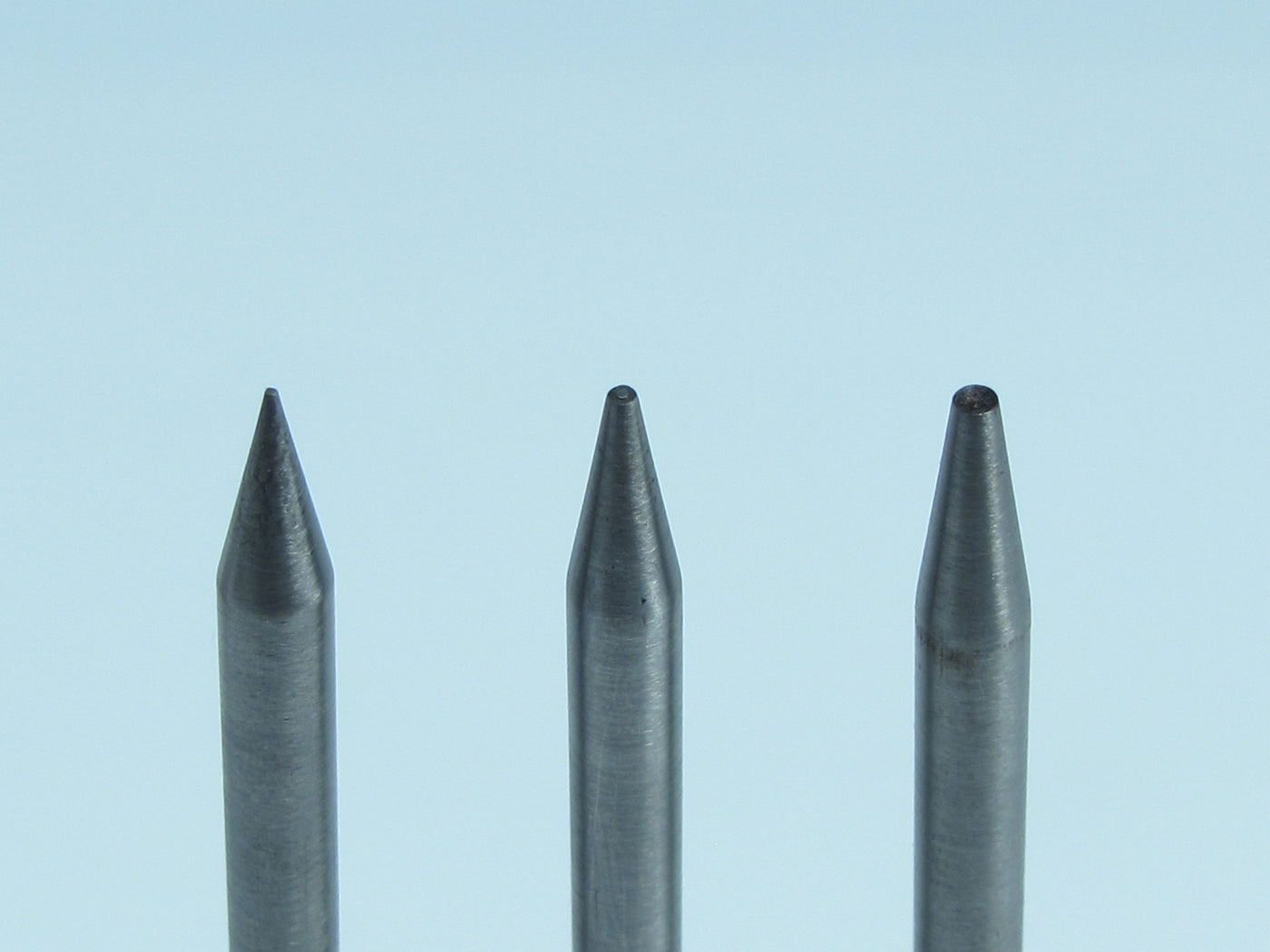

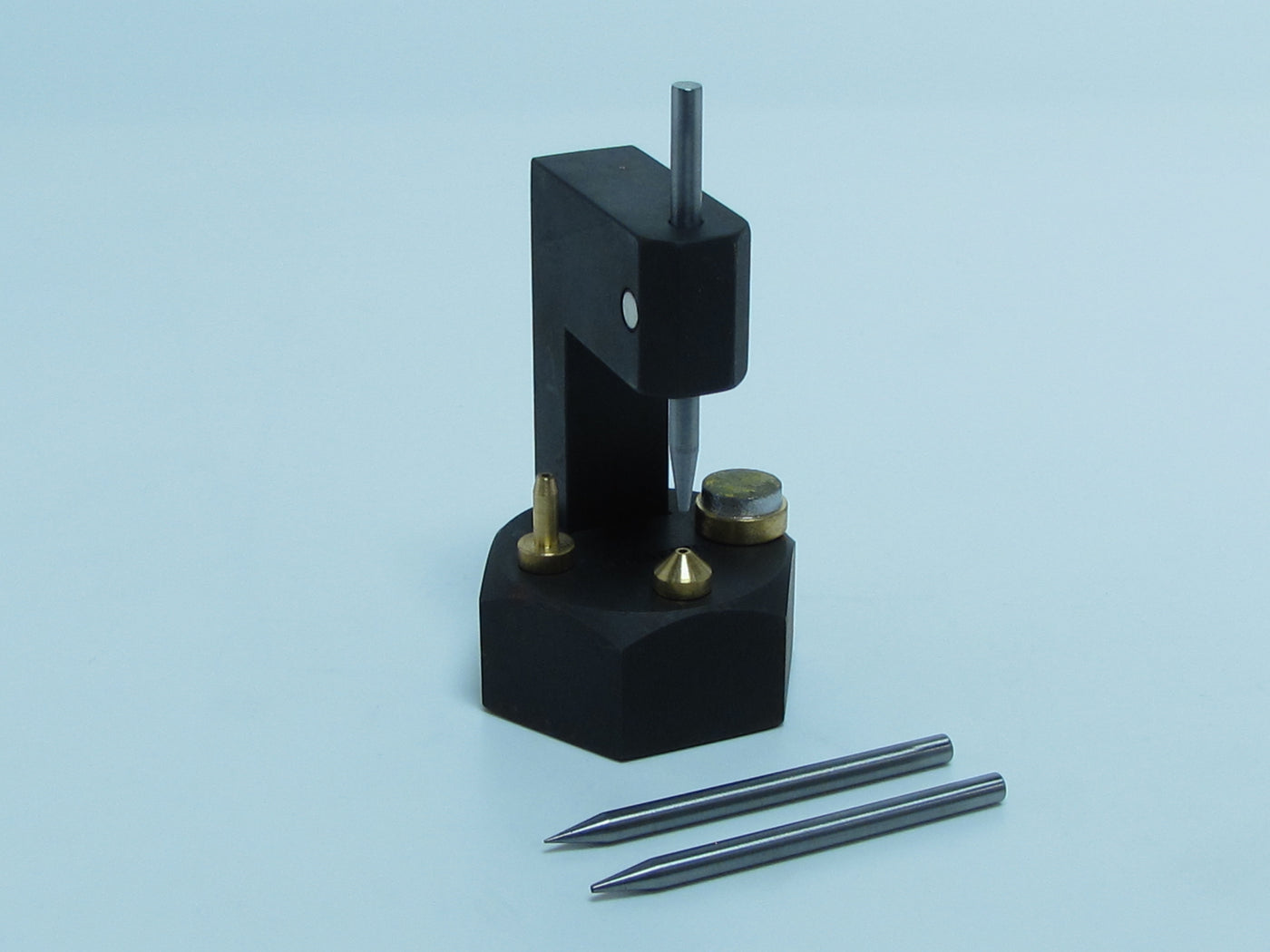

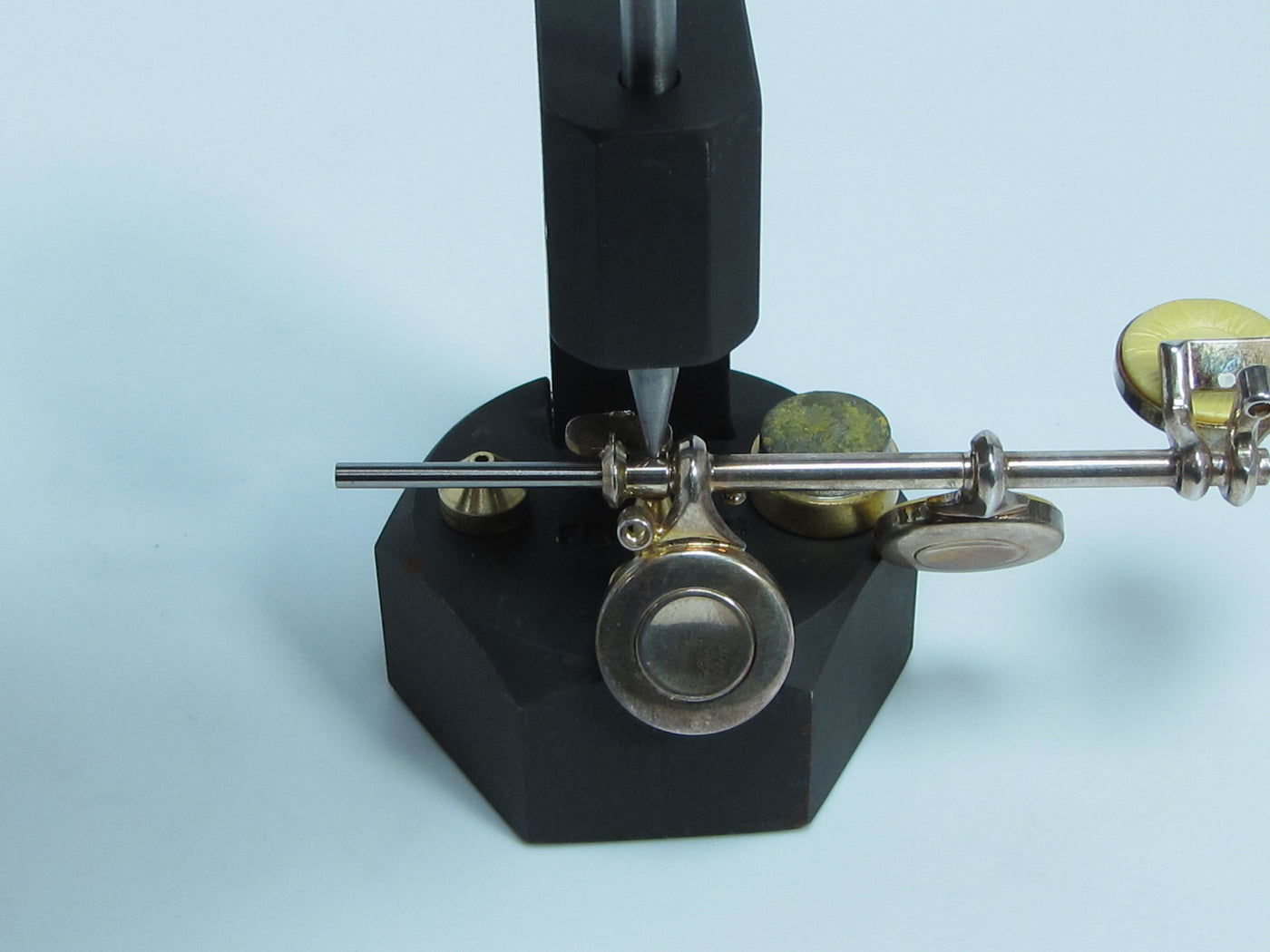

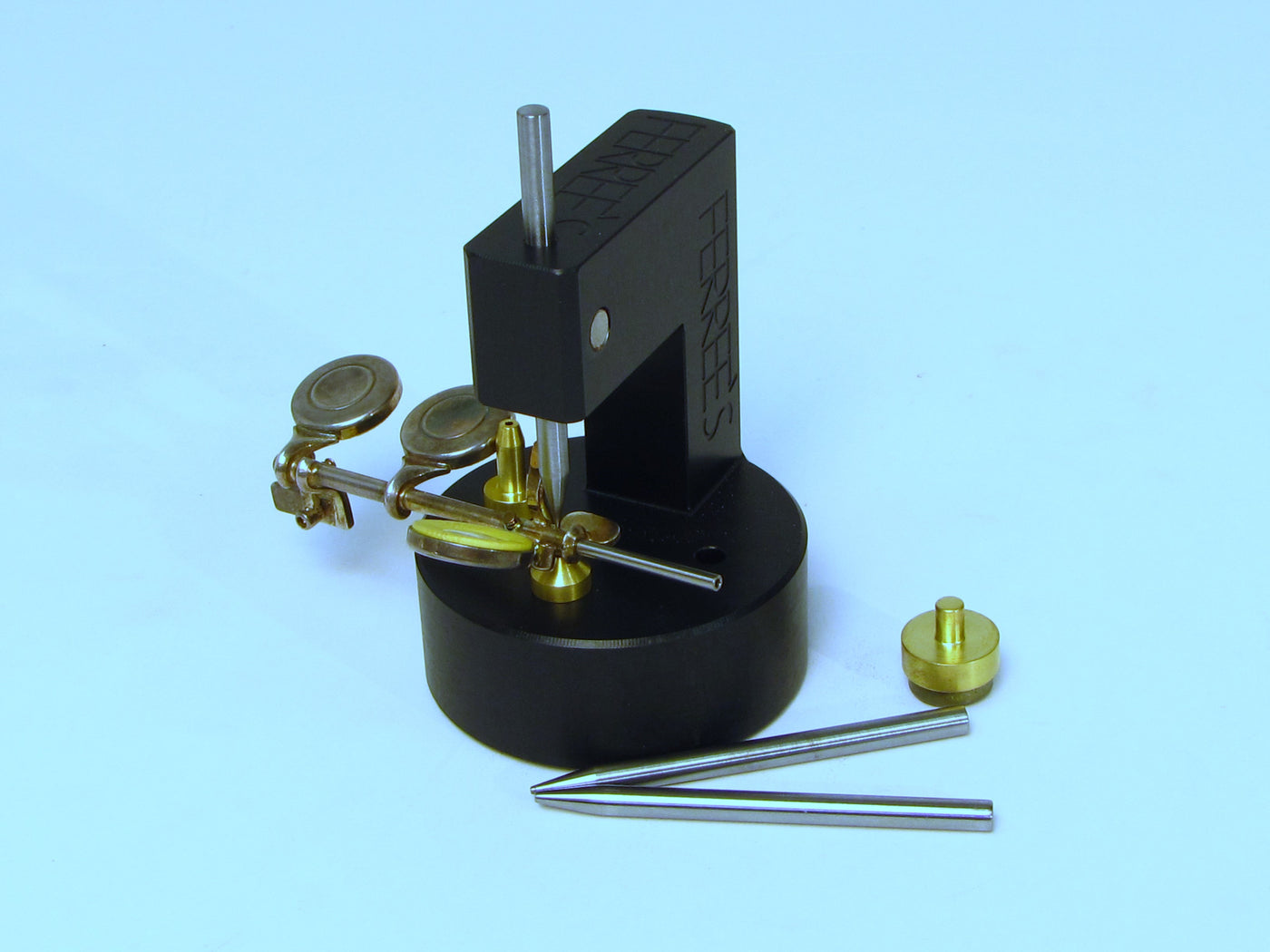

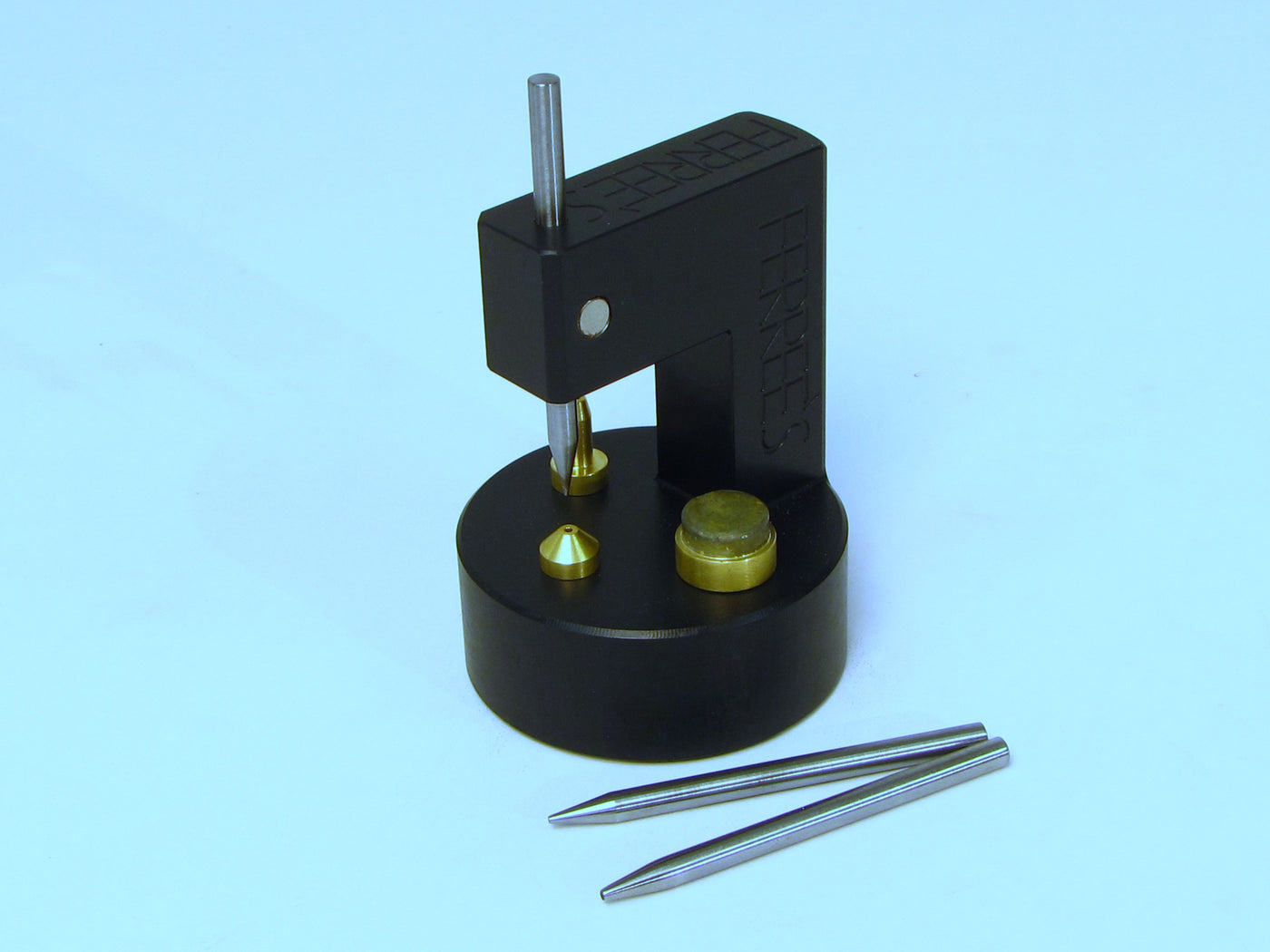

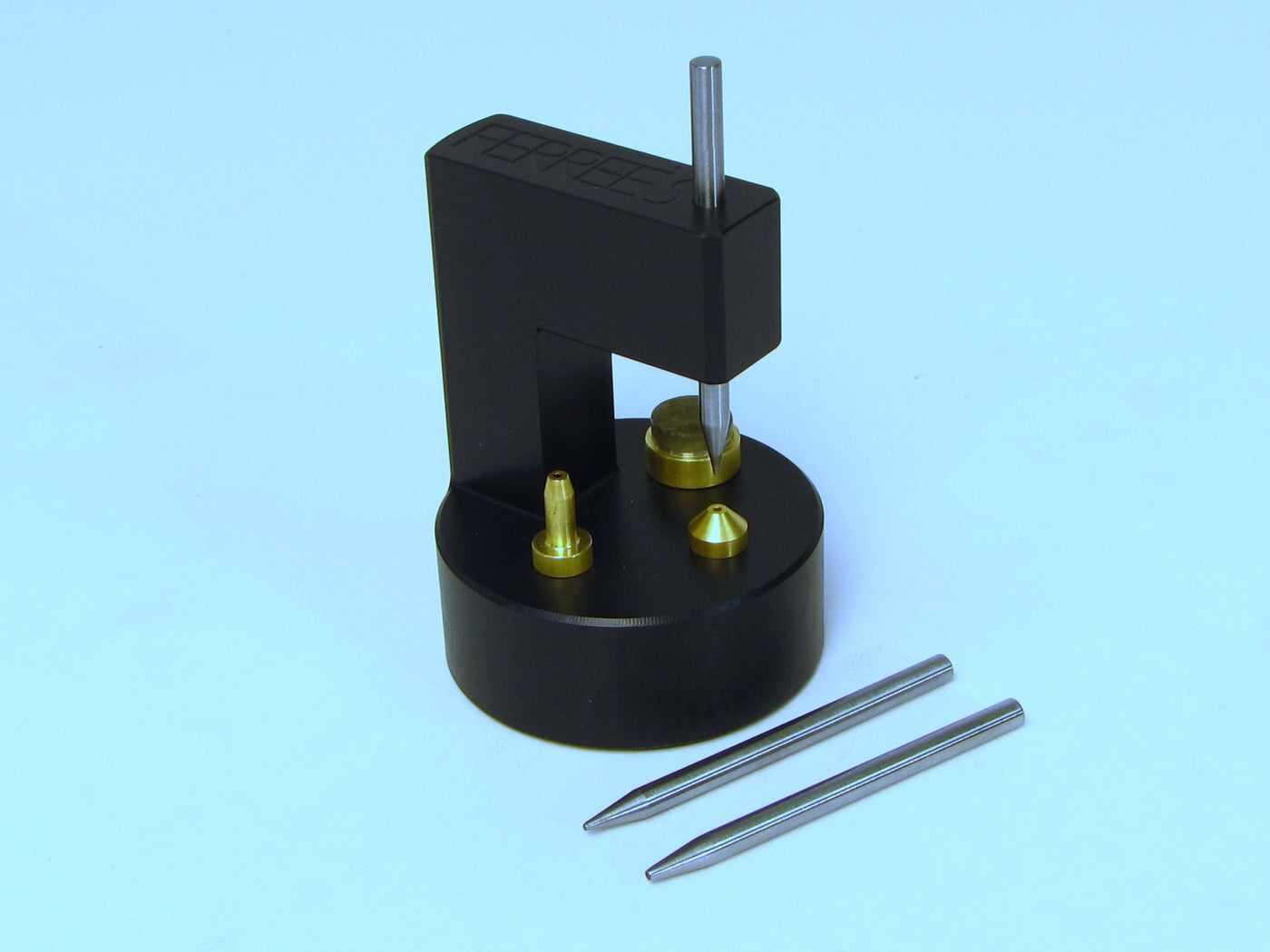

{"id":4183908384815,"title":"F20 Key Pin Removal Tool","handle":"key-pin-removing-tool","description":"\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003e\u003cspan style=\"color: #0000ff;\"\u003eF21 Pinning Needles and F22 Installation Pliers also available\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eF20 KEY PIN REMOVING TOOL\u003c\/strong\u003e\u003cbr\u003e This is a very versatile tool. In addition to flute key pin removal, many stubborn woodwind springs can also be removed with the F20 Key Pin Tool. And, you can be as fast as the factory in flute key pin removal. The set consists of a frame, three anvils and three punches. The brass anvils designed so that they can fit any key configuration. Newly improved model has a magnet mounted on the side to hold punches for hands free, stable operation .\u003cbr\u003e \u003cstrong\u003eANVILS\u003c\/strong\u003e\u003cbr\u003e The short brass anvil fits most keys. If you find a key that needs a custom fit, use the small lead filled anvil. This is similar to the old way of removing pins using a lead block and hand held punch. The third anvil is tall and made of brass. Use it to reinstall the pins when assembling the key.\u003cbr\u003e \u003cstrong\u003ePUNCHES\u003c\/strong\u003e\u003cbr\u003e The three punches are made out of tool steel and have been hardened and tempered. One punch has a sharp point for the pins that are ground off flush with the key. The second punch has a small flat end on the end and the third has a concave punching surface which works best on pins that protrude from the key or when reinstalling pins in the key.\u003cbr\u003e \u003cstrong\u003eINSTRUCTIONS\u003c\/strong\u003e\u003cbr\u003e To use the F20 Key Pin Removal Tool, install the proper fitting anvil into the base. Place the key on the anvil and slide the punch down to contact the pin. Then tap the punch to remove the pin.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eF20 \u003c\/strong\u003eKey Pin Removal Tool\u003cbr\u003e\u003cstrong\u003e F20A \u003c\/strong\u003eBrass Anvil (Short or Tall)\u003cbr\u003e\u003cstrong\u003e F20P \u003c\/strong\u003ePunch (Pointed, Flat or Hollow)\u003cbr\u003e\u003cstrong\u003e F20LB \u003c\/strong\u003eLead Anvil\u003cbr\u003e\u003cstrong\u003e F20U\u003cspan style=\"color: #0000ff;\"\u003e Update for F20 Send in old tool for update.\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e","published_at":"2019-10-06T20:02:44-04:00","created_at":"2019-10-06T20:02:44-04:00","vendor":"Ferree's Tools Inc.","type":"Woodwind","tags":["Flute","Piccolo"],"price":1300,"price_min":1300,"price_max":14958,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":30357689892911,"title":"F20 Key Pin Removal Tool","option1":"F20 Key Pin Removal Tool","option2":null,"option3":null,"sku":"F20","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F20 Key Pin Removal Tool - F20 Key Pin Removal Tool","public_title":"F20 Key Pin Removal Tool","options":["F20 Key Pin Removal Tool"],"price":14958,"weight":595,"compare_at_price":null,"inventory_quantity":14,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":30357689925679,"title":"F20P Punch (Pointed)","option1":"F20P Punch (Pointed)","option2":null,"option3":null,"sku":"F20PP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F20 Key Pin Removal Tool - F20P Punch (Pointed)","public_title":"F20P Punch (Pointed)","options":["F20P Punch (Pointed)"],"price":1300,"weight":57,"compare_at_price":null,"inventory_quantity":13,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":30357689958447,"title":"F20P Punch (Flat)","option1":"F20P Punch (Flat)","option2":null,"option3":null,"sku":"F20PF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F20 Key Pin Removal Tool - F20P Punch (Flat)","public_title":"F20P Punch (Flat)","options":["F20P Punch (Flat)"],"price":1300,"weight":57,"compare_at_price":null,"inventory_quantity":48,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":30357689991215,"title":"F20P Punch (Hollow)","option1":"F20P Punch (Hollow)","option2":null,"option3":null,"sku":"F20PH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F20 Key Pin Removal Tool - F20P Punch (Hollow)","public_title":"F20P Punch (Hollow)","options":["F20P Punch (Hollow)"],"price":1300,"weight":57,"compare_at_price":null,"inventory_quantity":57,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":30357690023983,"title":"F20A Brass Anvil (Short)","option1":"F20A Brass Anvil (Short)","option2":null,"option3":null,"sku":"F20AS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F20 Key Pin Removal Tool - F20A Brass Anvil (Short)","public_title":"F20A Brass Anvil (Short)","options":["F20A Brass Anvil (Short)"],"price":1500,"weight":57,"compare_at_price":null,"inventory_quantity":66,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":30357690056751,"title":"F20A Brass Anvil (Tall)","option1":"F20A Brass Anvil (Tall)","option2":null,"option3":null,"sku":"F20AT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F20 Key Pin Removal Tool - F20A Brass Anvil (Tall)","public_title":"F20A Brass Anvil (Tall)","options":["F20A Brass Anvil (Tall)"],"price":1500,"weight":57,"compare_at_price":null,"inventory_quantity":53,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":30357690089519,"title":"F20LB Lead Anvil","option1":"F20LB Lead Anvil","option2":null,"option3":null,"sku":"F20LB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F20 Key Pin Removal Tool - F20LB Lead Anvil","public_title":"F20LB Lead Anvil","options":["F20LB Lead Anvil"],"price":1500,"weight":57,"compare_at_price":null,"inventory_quantity":184,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":30357690122287,"title":"F20U Update for F20 ”Send in old tool for update.","option1":"F20U Update for F20 ”Send in old tool for update.","option2":null,"option3":null,"sku":"F20U","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F20 Key Pin Removal Tool - F20U Update for F20 ”Send in old tool for update.","public_title":"F20U Update for F20 ”Send in old tool for update.","options":["F20U Update for F20 ”Send in old tool for update."],"price":3500,"weight":595,"compare_at_price":null,"inventory_quantity":48,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20.jpg?v=1580057571","\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20P.jpg?v=1580061527","\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20A.jpg?v=1580061849","\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/IMG_9143.jpg?v=1580061904"],"featured_image":"\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20.jpg?v=1580057571","options":["Sold By Each"],"media":[{"alt":null,"id":6305980710960,"position":1,"preview_image":{"aspect_ratio":1.333,"height":2736,"width":3648,"src":"\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20.jpg?v=1580057571"},"aspect_ratio":1.333,"height":2736,"media_type":"image","src":"\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20.jpg?v=1580057571","width":3648},{"alt":"F20P Punches - Pointed - Flat - Hollow","id":6306125611056,"position":2,"preview_image":{"aspect_ratio":1.333,"height":2736,"width":3648,"src":"\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20P.jpg?v=1580061527"},"aspect_ratio":1.333,"height":2736,"media_type":"image","src":"\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20P.jpg?v=1580061527","width":3648},{"alt":"F20A Brass Anvils Short - Tall F20LB Lead Anvil","id":6306125938736,"position":3,"preview_image":{"aspect_ratio":1.333,"height":2736,"width":3648,"src":"\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20A.jpg?v=1580061849"},"aspect_ratio":1.333,"height":2736,"media_type":"image","src":"\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/F20A.jpg?v=1580061849","width":3648},{"alt":"F20 Key Pin Removal Tool in use","id":6306126987312,"position":4,"preview_image":{"aspect_ratio":1.333,"height":2736,"width":3648,"src":"\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/IMG_9143.jpg?v=1580061904"},"aspect_ratio":1.333,"height":2736,"media_type":"image","src":"\/\/www.ferreestoolsinc.com\/cdn\/shop\/products\/IMG_9143.jpg?v=1580061904","width":3648}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003e\u003cspan style=\"color: #0000ff;\"\u003eF21 Pinning Needles and F22 Installation Pliers also available\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eF20 KEY PIN REMOVING TOOL\u003c\/strong\u003e\u003cbr\u003e This is a very versatile tool. In addition to flute key pin removal, many stubborn woodwind springs can also be removed with the F20 Key Pin Tool. And, you can be as fast as the factory in flute key pin removal. The set consists of a frame, three anvils and three punches. The brass anvils designed so that they can fit any key configuration. Newly improved model has a magnet mounted on the side to hold punches for hands free, stable operation .\u003cbr\u003e \u003cstrong\u003eANVILS\u003c\/strong\u003e\u003cbr\u003e The short brass anvil fits most keys. If you find a key that needs a custom fit, use the small lead filled anvil. This is similar to the old way of removing pins using a lead block and hand held punch. The third anvil is tall and made of brass. Use it to reinstall the pins when assembling the key.\u003cbr\u003e \u003cstrong\u003ePUNCHES\u003c\/strong\u003e\u003cbr\u003e The three punches are made out of tool steel and have been hardened and tempered. One punch has a sharp point for the pins that are ground off flush with the key. The second punch has a small flat end on the end and the third has a concave punching surface which works best on pins that protrude from the key or when reinstalling pins in the key.\u003cbr\u003e \u003cstrong\u003eINSTRUCTIONS\u003c\/strong\u003e\u003cbr\u003e To use the F20 Key Pin Removal Tool, install the proper fitting anvil into the base. Place the key on the anvil and slide the punch down to contact the pin. Then tap the punch to remove the pin.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eF20 \u003c\/strong\u003eKey Pin Removal Tool\u003cbr\u003e\u003cstrong\u003e F20A \u003c\/strong\u003eBrass Anvil (Short or Tall)\u003cbr\u003e\u003cstrong\u003e F20P \u003c\/strong\u003ePunch (Pointed, Flat or Hollow)\u003cbr\u003e\u003cstrong\u003e F20LB \u003c\/strong\u003eLead Anvil\u003cbr\u003e\u003cstrong\u003e F20U\u003cspan style=\"color: #0000ff;\"\u003e Update for F20 Send in old tool for update.\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e"}
